Which Boss Kit Do I Need for my Land Rover Defender?
Please read the information below before ordering a Defender boss kit.
The only sure way to determine how may splines your Land Rover Defender steering column has is to remove the steering wheel and count them. However, the guide below might help to assist in identifying which version of spline count you "might" have.

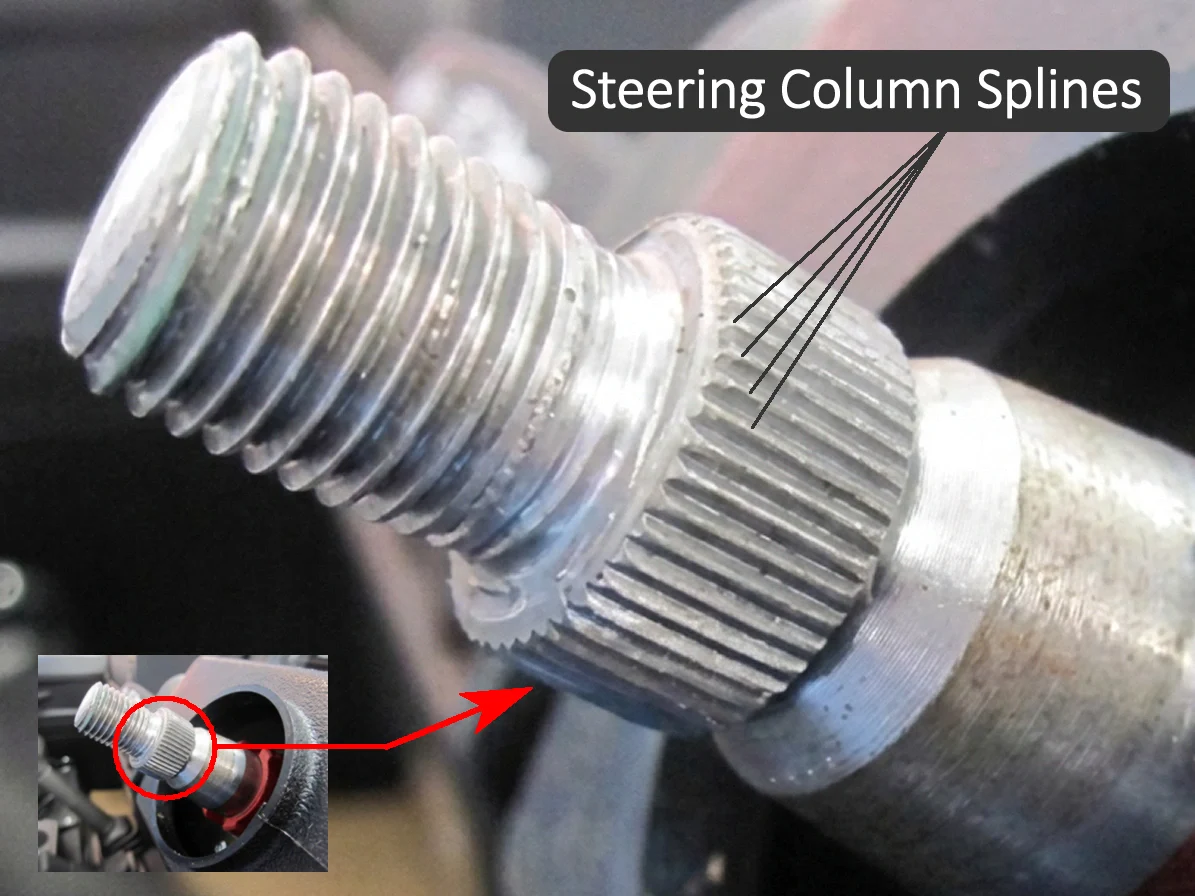

Steering Column Splines
The number of steering wheel splines (the grooves that connect the wheel to the column) varies by make, model, and year.
Common counts range from 36 to 48 splines, while classic vehicles often use 25 or other specific counts.
Generally, 36 spline columns are smaller, while 48 spline columns have a larger diameter.Do I need a 36 or 48 spline Land Rover Defender boss kit?
Land Rover Defenders feature either 25, 36 or 48 splines on their steering columns. Land Rover was inconsistent with their manufacturing, making the number difficult to predict based on year or trim.
If you are upgrading to an aftermarket steering wheel or require a replacement, parts are available tailored to each steering column type:
- 25 Splines
- 36 Splines
- 48 Splines

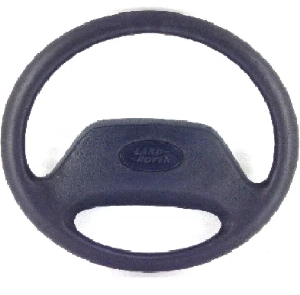

2 Spoke Padded Steering Wheel
This steering wheel, often referred to as the "airbag" wheel, (although it does not contain an airbag) was introduced on later 300Tdi and Td5 models and continued on some Puma (2.4 and 2.2 TDCi) Defenders.
It was also fitted to NAS D90 models and 50th anniversary V8 Defenders.
It was also fitted to NAS D90 models and 50th anniversary V8 Defenders.
Number of Splines: Unfortunately, these vehicles were fitted with both 36 and 48 spline steering columns, and there is no reliable way to identify which one you have from the steering wheel alone.
2 Spoke Steering Wheel
Number of Splines: If your Defender 300TDI, TD5 or TDCI has this type of steering wheel, you will likely need a 48 spline boss kit.
How to check how many splines on steering column
- Carefully remove the centre pad.
- Loosen the retaining nut, but do not remove it completely.
- Rock and pull the steering wheel until it comes free from the taper.
- Count the splines on the steering column.
- Order the matching 36 or 48 spline boss kit.
Shop for Defender Boss Kits or Defender Steering Wheels
